2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel

Name: 25g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel
Brand: Sourcelight or OEM
Price: 1 USD

Buy cheap 2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel product

Brand Name : Sourcelight or OEM

Model Number : 2.5g bidi sfp

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 10PCS or 20PCS Plastic trays; 1pc gift box.

Datarate : 2.5GG BIDI SFP 80KM

Wavelength : TX1550NM/RX1490NM

Distance : 80KM

TX Power : 0~5dBm

RX Sensitivity : -28dBm

Connector : Simplex LC/UPC

Contact Now

2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel

Overview

The SFP BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps/2.125Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

Dual data-rate of 2.488Gbps/2.125Gbps operation
1550nm DFB laser and APD photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C

Parameter

Package (Form Factor)	BIDI SFP
Data Rate (typical)	2.488 Gb/s
Centre Wavelength	Tx1550nm/Rx1490nm
Distance	80km
Diagnostics	Digital Monitor
Transmitter	DFB Laser
Receiver	APD photo detector
TX Output Power (dBm)	0~+5
RX Sensitivity (dBm)	-28
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	Simplex LC/UPC

Application

SDH STM-16 and SONET OC-48 system
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Product Tags:

sfp transceiver module

fiber optic sfp module

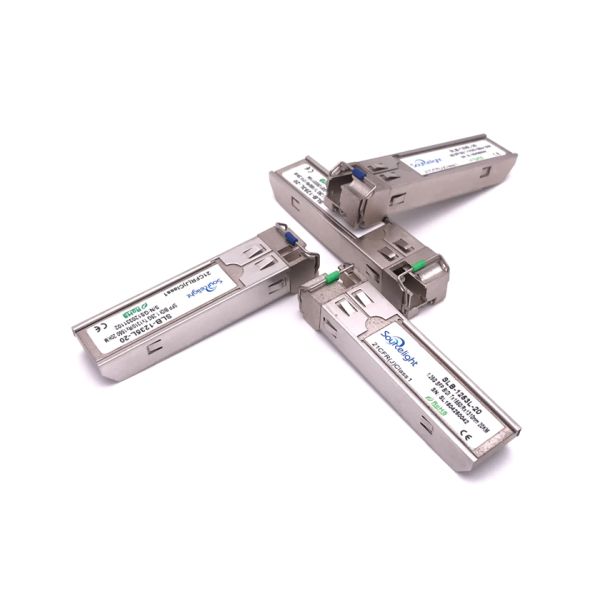

2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel Images
